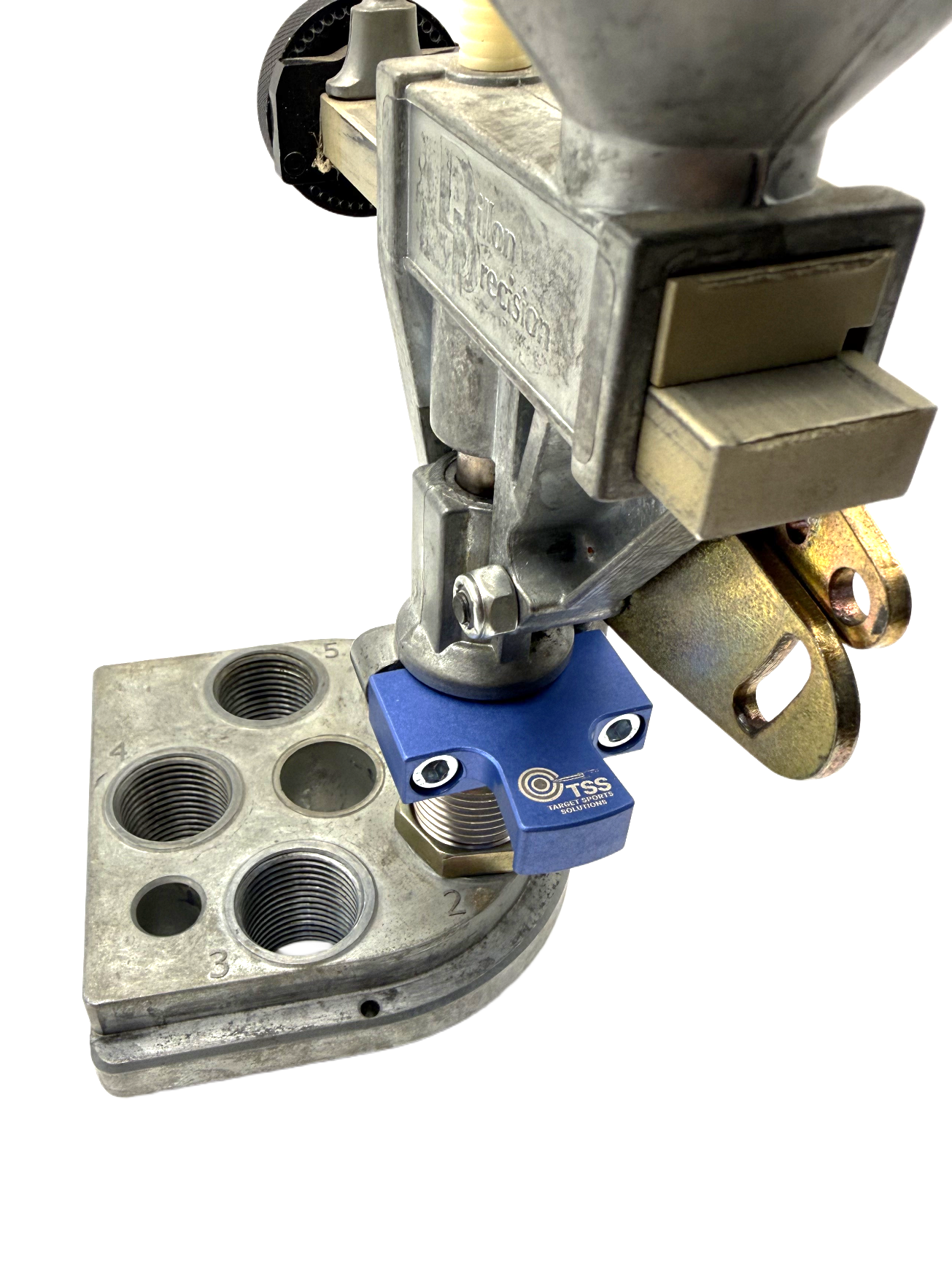

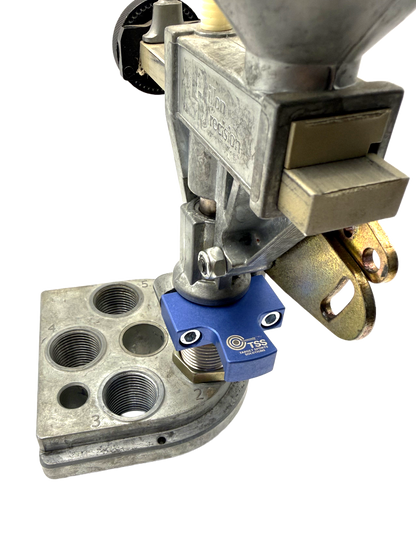

The TSS Dillon Powder Measure Quick Disconnect Upgrade kit enables a tool-free changeover for your OEM Dillon Powder Measure. The OEM factory clamp is great until you want to quickly move over your powder measure to a different tool head or service your tool head for cleaning. It even makes emptying unused powder quick and painless.
Compatible with Dillon Presses: RL-550, XL-650, XL-750, Super-1050, RL-1050, RL-1100
Material 6061-T6 Aluminum with Blue Anodizing

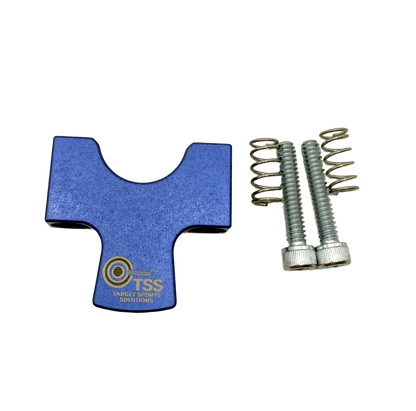

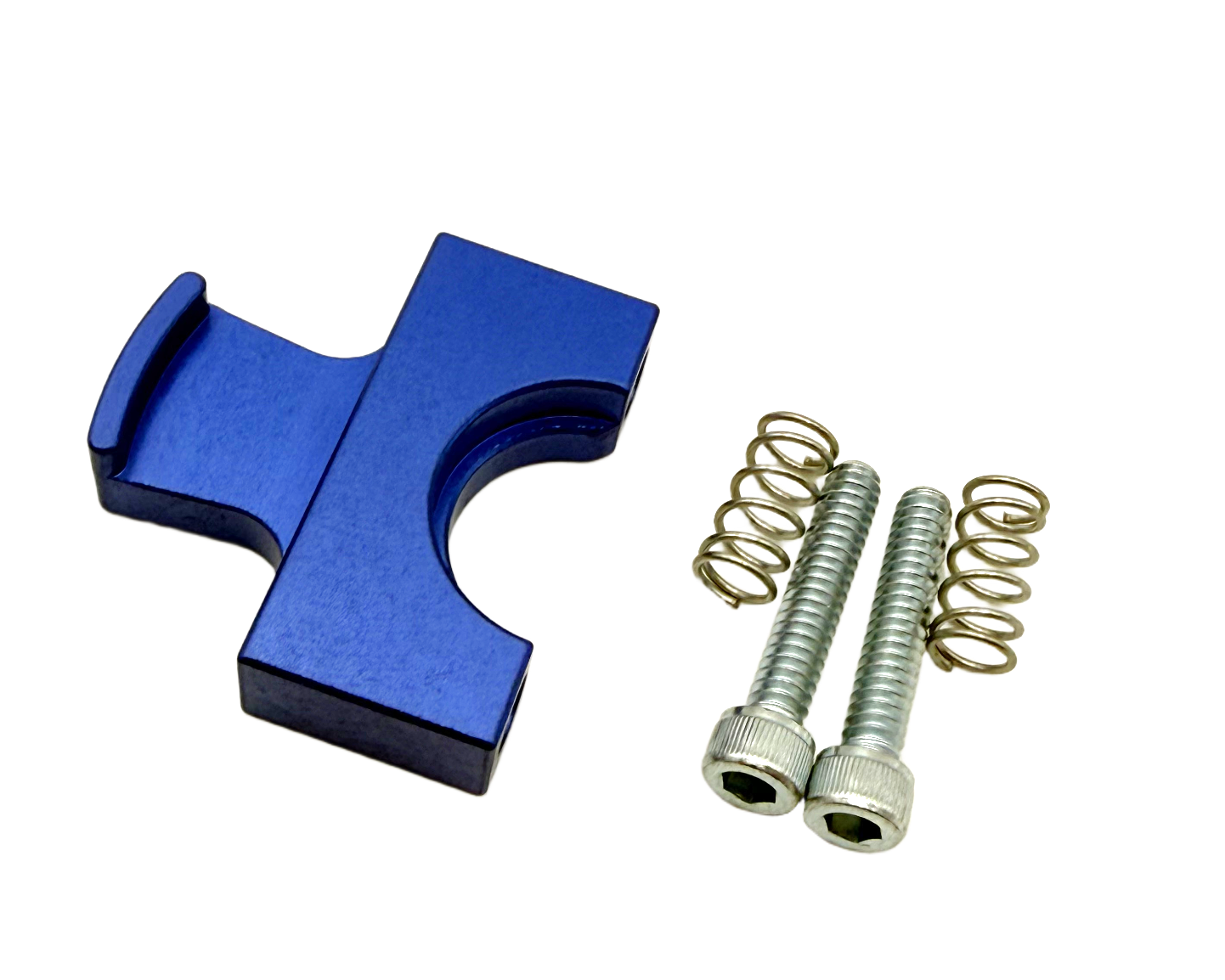

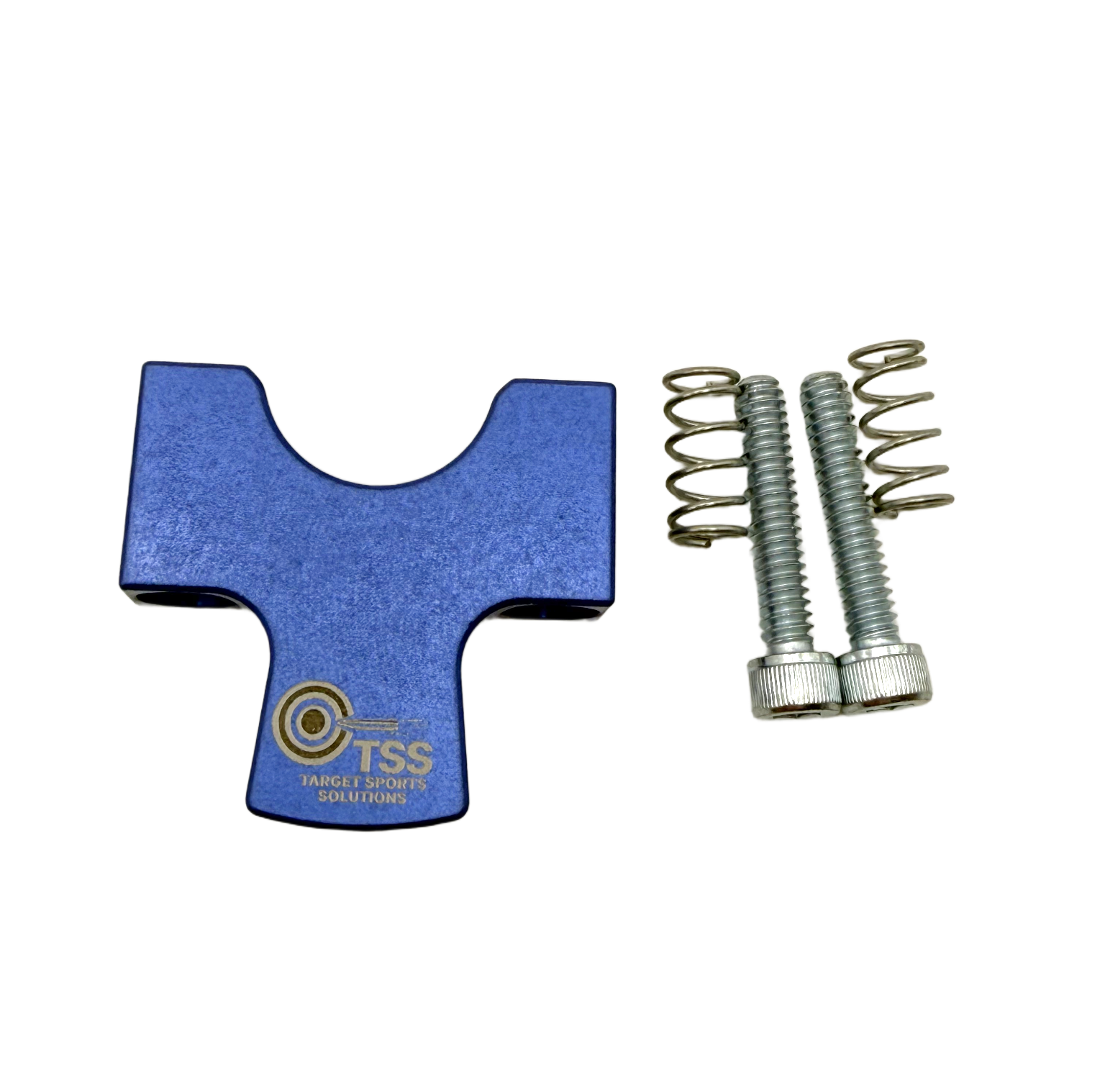

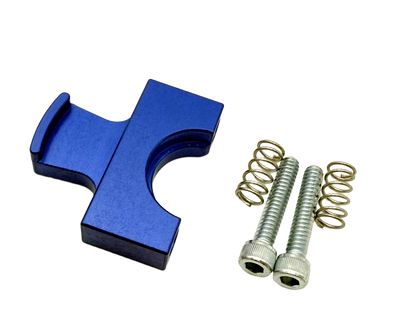

Includes Quick Disconnect Body, Screws, and Springs
Allows for slight rotation for self-alignment

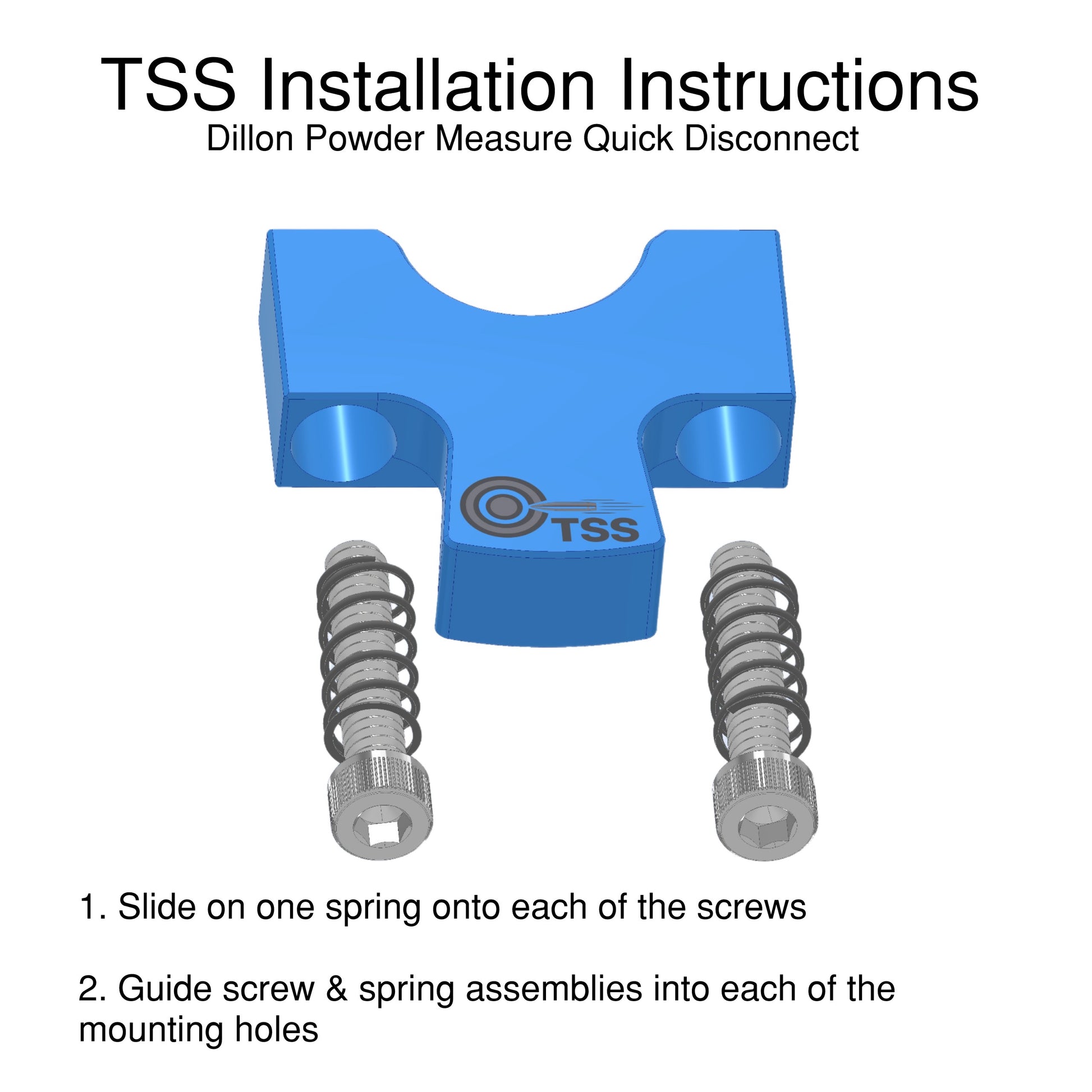

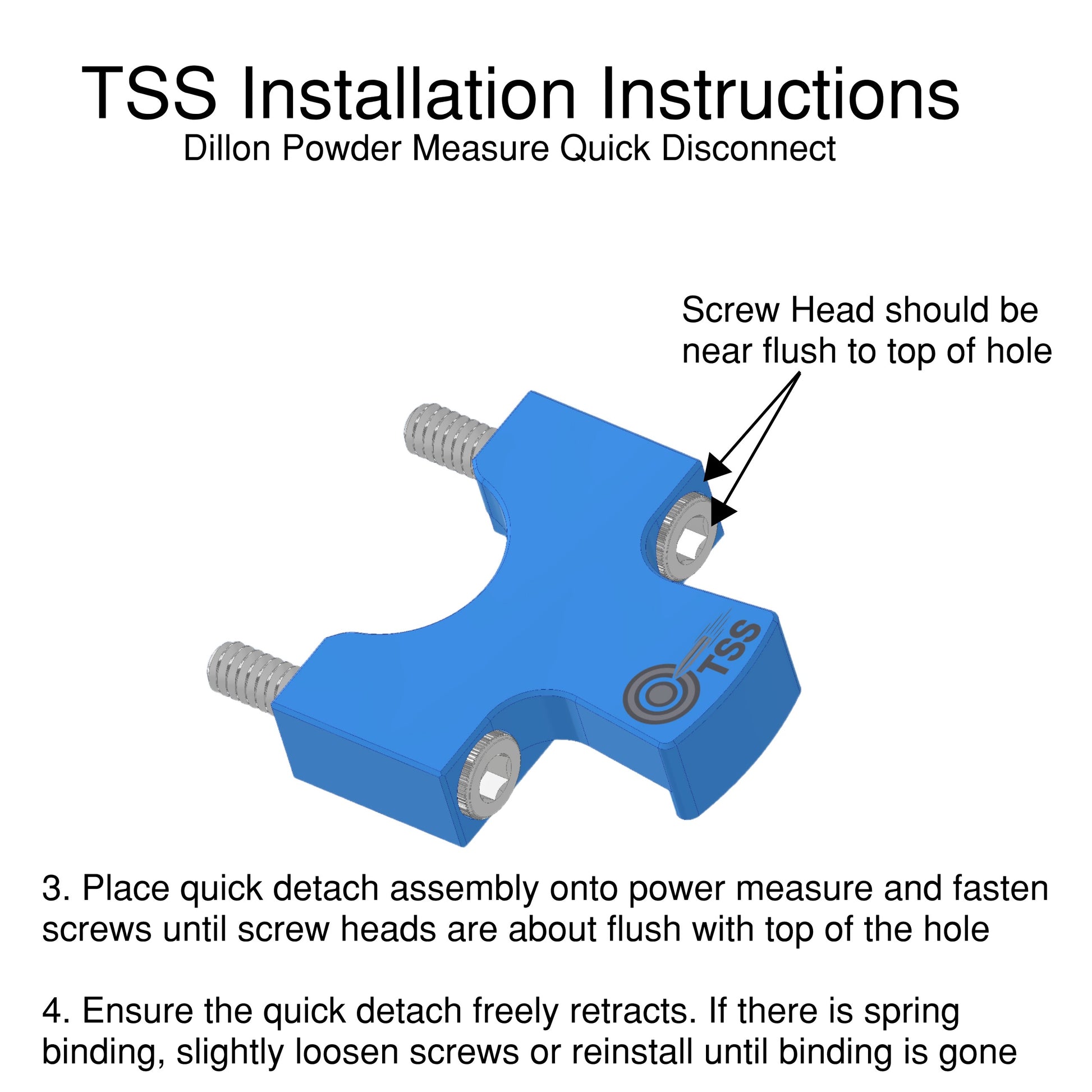

Installation Instructions: Remove the OEM factory powder measure retaining bracket and both screws. Insert each screw into a spring and slide both assemblies into the quick disconnect body. Applying a light drop of blue thread locker on the screw is recommended. Place the quick disconnect assembly where the factory OEM retainer was. Both bolts should be screwed in until they are flush or slightly proud of the quick disconnect body. Setting the bolts too deep will not let the quick disconnect retract enough to remove the powder measure and can permanently compress the springs. If your springs get locked up and don't move properly, try tightening/loosening the bolts or remove and reinstall until they no longer bind. Once you have the bolts and springs installed and there is no binding, it will stay that way. Older model powder measures that use lock nuts are compatible with little modification or longer replacement bolts.
Warning: Some sellers are making a 3D printed plastic version of this part, we feel this is a very bad idea, as the forces generated to actuate your powder measure will damage this plastic collar. It is not safe or smart to risk incomplete powder charges on cheaper plastic parts. Dillon loves to use plastic parts, if they could have in this case, they would have.
***See my other listings to combine all Quick Disconnect Parts and Save!
